MotionStudio.
A browser-based video editor, built on Remotion.
Place text, images, video and audio on a canvas, arrange them on a frame-accurate timeline, animate them, and export to MP4 / WebM / GIF / MOV — entirely in the browser, no backend. This page is the living build journal: the architecture, the decisions, and the bugs that taught me something.
Why Remotion is the core bet
The product renders real video. Remotion gives me frames as a first-class unit, <Sequence> for temporal composition, <Player> for in-app preview, and renderMedia for the actual encode — building a renderer and encoder myself would be months of work that teaches nothing about this product. The interesting engineering is everything I built on top of it:
Frame-based temporal model — every element carries `startFrame` + `durationInFrames`, mapped 1:1 onto `<Sequence from={startFrame}>`. Visibility is the half-open window `[start, start + duration)`. Frames, not seconds, because Remotion is frame-based and frames are exact — no floating-point drift.
One shared renderer = guaranteed WYSIWYG — the editor preview and the Remotion export call the *same* style function, differing only by a `scale` argument (editor < 1, Remotion = 1). WYSIWYG isn't "we tried to match" — the preview is *mathematically* the export.
Animation on Remotion's primitives — `interpolate` with `extrapolate: 'clamp'` so animations finish instead of extrapolating to infinity, and `spring` for physics (it needs `fps`, because a bounce is real-time). Multiple animations accumulate into one transform — factors multiply, offsets add — the same algebra compositors use.

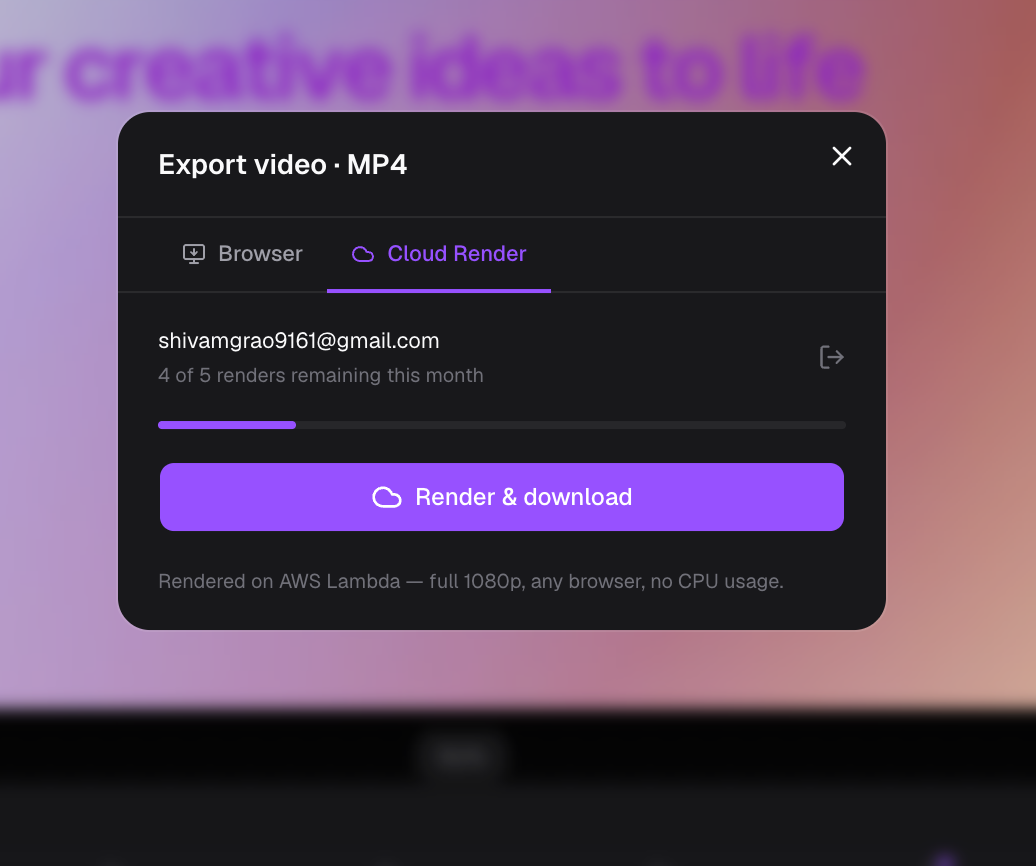

Export via the Remotion CLI — Remotion renders in Node (headless Chrome + FFmpeg), not the browser. A `registerRoot` entry exposes the composition, `calculateMetadata` derives size/fps/duration per project, and the in-app Export dialog generates the exact `npx remotion render` command plus a `props.json`. Formats via `--codec` (h264 / vp8 / gif / prores).
DOM video vs Remotion video — the editor previews with a DOM `<video>` (seek on scrub for exact frames, play natively during playback, muted for reliable autoplay); the export uses `<OffthreadVideo>`, which is authoritative.
Frames, <Sequence>, <Player>, renderMedia — the video engine. The one dependency the product is genuinely built around.
Discriminated-union element types; adding a new element type = one type + one renderer.
Global state with zero boilerplate: one create() → a hook + selectors. No providers, no reducers.
/ dashboard, /editor/:projectId — the URL is the single input that selects a project.
Drag/resize/rotate handles are a solved problem; rebuilding them is weeks of hit-testing math that teaches nothing about this product.
Fast, consistent dark UI via design tokens; accessible primitives (Dialog, Popover, Select) without reinventing them.
Client-only persistence, split by data shape: small JSON state in localStorage, large media blobs in IndexedDB.
Two layers, one rule
engines/ own DATA + LOGIC (no UI) features/ own UI (compose engines)
The Project is the aggregate root. One Project object owns all data — elements, assets, settings. Engines don't keep their own copies; they expose verbs that read and write the one Project through a single mutation point (updateProject). Everything downstream falls out of this: undo/redo hooks the one mutation point and covers every edit automatically, autosave persists the one Project with nothing to wire per-feature, and state drift is impossible because there's only ever one source of truth.
The three data moves — immutability everywhere
add → [...arr, x]
remove → arr.filter(x => x.id !== id)
update → arr.map(x => x.id === id ? { ...x, ...patch } : x)React and Zustand detect change by reference identity, and undo snapshots must stay frozen. A single .push() would skip re-renders and corrupt history.
Why some engines are stores and others are hooks: a store owns state (Project, Editor). A hook owns verbs over state it doesn't hold — Canvas and Asset read the active project and write back via updateProject. Keeping element data on the Project, not in the Canvas engine, is the aggregate root enforced.
Composition-space coordinates
Elements are stored in output resolution (16:9 = 1920×1080), not screen pixels; the editor renders a scaled view. The export must match the editor — store coordinates once at final resolution and every view (editor at ~50%, Remotion at 100%) just multiplies by its own scale. This one conversion powers canvas dragging, drop-to-canvas, and scrubbing.
data → screen : × scale (shrink to fit the window) screen → data : ÷ scale (grow a drag back to real coords)

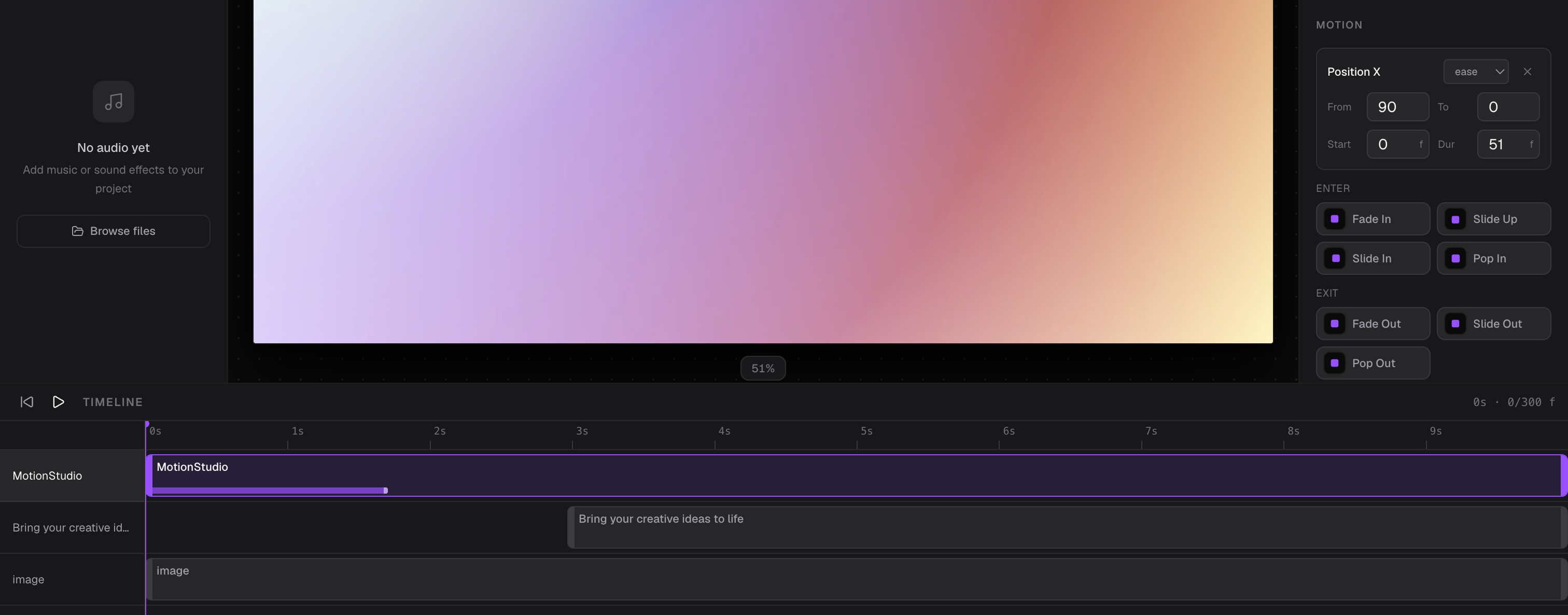

Timeline coordinate math
The same idea, on the time axis. Dragging a clip to retime it is updateElement(id, { startFrame }) — the same verb as canvas dragging, through the same door.
pxPerFrame = trackWidth / totalFrames frameToX(f) = f × pxPerFrame (draw a clip / ruler tick) xToFrame(x) = round(x / pxPerFrame) (scrub / drag)
Time-based playback clock
Playback advances by real elapsed time × fps, not currentFrame++ per animation frame. requestAnimationFrame fires at the monitor's rate — 60 or 120Hz, dropping under load — so frame++ would play 30fps content at 60fps on a 60Hz screen. Measuring wall-clock time keeps speed correct on any hardware.
Persistence, split by data shape
Object URLs die on reload, so the bytes are persisted and a fresh URL is minted each session. localStorage can't hold large binaries; IndexedDB is built for Blobs. Editor view state is intentionally not persisted — you don't want to reopen frozen mid-playback.
metadata (JSON, small) → localStorage via Zustand persist media bytes (binary) → IndexedDB
Undo/redo — snapshots + coalescing
History is snapshots of the projects array. Because edits build new objects immutably, snapshots share unchanged sub-objects — no deep copies. Rapid edits within ~500ms coalesce into one step, so a whole drag or a typing burst is one undo. It was nearly free to build, because every edit already flows through updateProject.
Problems faced, and how they fell.
Omit on a discriminated union silently collapses to common fields — updateElement lost content, assetId, and friends with no error.
An ElementPatch type: the intersection of per-member partials, so every field of every union member is patchable.
Remotion's <Composition> inferred props as unknown. An interface isn't assignable to Record<string, unknown> — it could be augmented later; a type alias is.
Changed interface ExportProps to type ExportProps. One keyword, fixed inference.
contenteditable cursor jumped to the start on every keystroke — React re-rendering the element reset the DOM selection.
Set initial text via a ref on mount only, then let onInput push to the store without React re-writing the node.
react-moveable under a scaled canvas: element coords are composition-space but the stage is scaled, so handles and elements disagreed.
Drive drag/resize with client-pixel deltas ÷ scale, committing composition coords on release.
Layer reorder did nothing. The first attempt shuffled array order — but stacking is driven by zIndex, not array order.
Rewrote it to reassign contiguous zIndex values.
Undo restored dead blob: URLs — asset rehydration went through updateProject and entered history.
Rehydration became a silent update ({ history: false }).
White-on-white text: default text color was #ffffff on a white canvas. Invisible, and no error anywhere.
A default that contrasts with the canvas — and a lesson that "no crash" ≠ "correct."
- ▹Export is terminal-based — a true in-browser render needs a backend or Lambda; Remotion can't render inside a tab.
- ▹Uploaded media in exports needs real file paths in props.json — blob: URLs are browser-only.
- ▹Editor audio/video preview is muted and autoplay-dependent; the export is authoritative for sound and timing.
- ▹No scene grouping yet — sequencing is done by positioning clips on the timeline.
- ▹Fonts fall back to system sans-serif in the Node render (not bundled yet).
A single mutation path is a superpower — it's what made undo, autosave, and WYSIWYG cheap. Decide where data changes before deciding how.
Store data in the target domain (output resolution, frames), not the view's units — views come and go, the data shouldn't.
"No error" isn't "correct" — white-on-white text and silent Omit-on-union both shipped zero warnings.
Buy the boring parts (moveable handles, encoding) and build the parts that are actually your product: the composition model, the timeline, the animation system.
